EGO-17B

Keyword:

Classification:

Hotline:

EGO-17B

　STEAM STERILIZER

Sterilization Cycle With High Performance And Reliability

HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly;
Unique air-water separating system enhances system efficiency and reliability;
High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;
Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles.

Excellent Traceability

Onboard printer automatically prints the sterilization data and result at the end of each cycle;

Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;

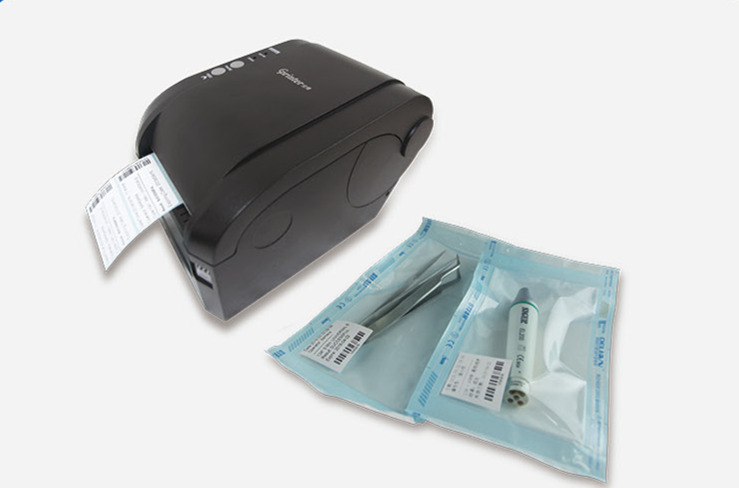

Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;

5L built-in clean water tank

5L built-in clean water tank allows the user to perform 10 sterilization cycles;
Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
Built-in float switch delivers notices whenever the water is less than the minimum level.

Color touch screen

Optional Waste Water Discharge Solution

Automatic: connect the pipe to the outlet at the back,waste water will be discharged automatically.

Manual: connect the pipe to the outlet in the front panel to discharge the waste water manually when the warning message pops up on the display.

Effective security protection

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between.
