Product Description




Sterilization Cycle With High Performance And Reliability

  • European Class B standard model, with 3-stage pre-vacuum process.

  • HAFC system  (Hot Air Forced Circulation) improves the dry efficiency significantly;
  • Unique air-water separating system enhances system efficiency and reliability;
  • High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
  • Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
  • Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
  • THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;
  • Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
  • 5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
  • 4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
  • Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles.


Excellent Traceability


  • Onboard printer automatically prints the sterilization data and result at the end of each cycle;


  • Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;

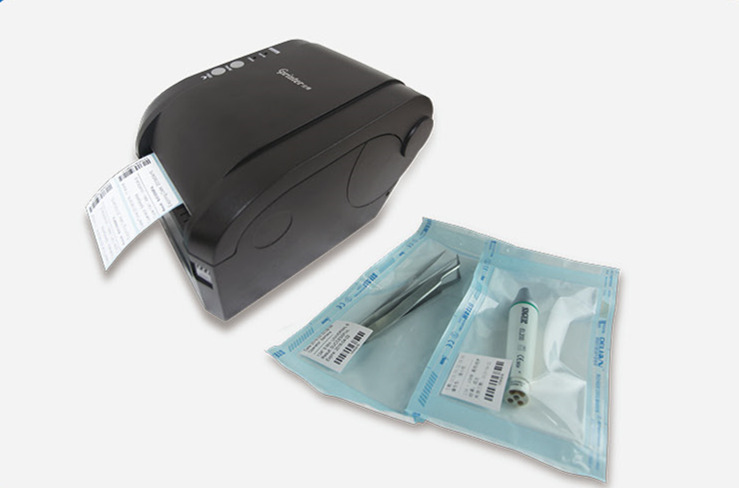

  • Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;


 5L built-in clean water tank



  • 5L built-in clean water tank allows the user to perform 10 sterilization cycles;
  • Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
  • Built-in float switch delivers notices whenever the water is less than the minimum level.


Color touch screen


  • Color touch screen with excellent sensitivity;
  • Showing the data of the sterilization,cycle progress and errors in real time.


Optional Waste Water Discharge Solution



  • Automatic: connect the pipe to the outlet at the back,waste water will be discharged automatically.



  • Manual: connect the pipe to the outlet in the front panel to discharge the waste water manually when the warning message pops up on the display.


EGO 17B+ is our servo-assisted electric door model,easy and extra-safe.


Effective security protection

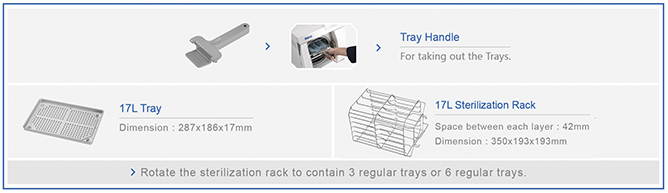

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between.
